Single point load cell Aluminum weight sensor

Productdetails:

Plaats van herkomst:	China
Merknaam:	RUIJIA
Certificering:	CE
Modelnummer:	RJ

Detailinformatie

Plaats van herkomst:

China

Merknaam:

RUIJIA

Certificering:

Modelnummer:

Nominale capaciteit:

10~40 (kg)

Nominaal vermogen:

2,0 mV/V±10%

Nul saldo:

±0,0200 mV/V

Niet-lineariteit:

0,02% RO

Hysterese:

0,02% RO

Herhaalbaarheid:

0,02% RO

Markeren:

High Light

Markeren:

aluminum single point load cell

single point weight sensor

load cell with warranty

Handelsinformatie

Min. bestelaantal:

Prijs:

USD5 ~45/piece

Verpakking Details:

Standaard exportverpakking

Levertijd:

5-8 WERKDAGEN

Betalingscondities:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen:

1000 Stuk/Stukken per Maand

Productomschrijving

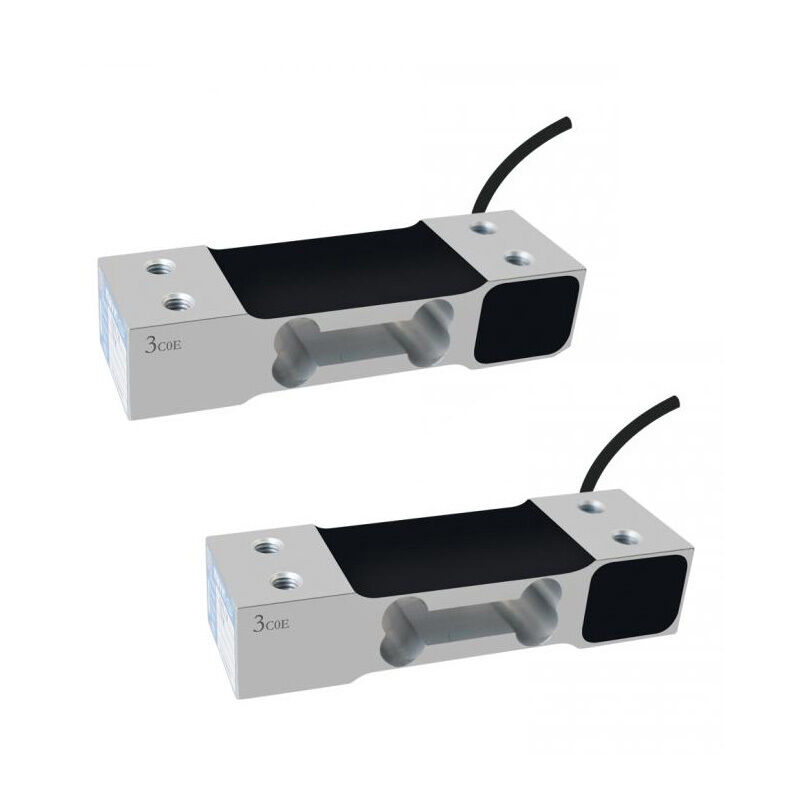

Single point load cell Aluminum weight sensor

Single Point Load Cell (10-40kg)

Load cell is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales.

Key Features:

Aluminum alloy construction

Compact Design

Easy to install

Long term, reliable operation

Usage & Applications:
price computing scales
counting scales
weighing scales
retail scales

Dimension:

Single point load cell Aluminum weight sensor 0

Specification:

Rated Capacities	10~40 (kg)
Rated Output	2.0 mV/V±10%
Zero Balance	±0.0200 mV/V
Non-linearity	0.02 %R.O.
Hysteresis	0.02 %R.O.
Repeatability	0.02 %R.O.
30mins Creep	0.02 %R.O.
30mins Return	0.02 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.002 %R.O./℃
Temperature Effect On Zero	0.003 %R.O./℃
Input Impedance	410±15 Ω
Output Impedance	350±5 Ω
Insulation Impedance	≥5000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP66 / IP67
Cable	φ4×0.5m
Recommended Platform Size	350×350 mm
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)

Company Information

Single point load cell Aluminum weight sensor 1

Ruijia is a technical service enterprise specializing in force measurement technology research, product R & D, production, sales and service. It is mainly engaged in micro force sensors, high-precision load cells, S-type sensors, cantilever sensors, multi-dimensional force sensors, tension sensors, transmitters R & D and production of control instruments and provide system engineering control solutions. The company has modern and spacious workshops, high-quality production and testing equipment, professional R & D team and perfect management system to provide reasonable and practical solutions for our customers. With years of understanding and understanding in the field of automation, the company has always adhered to the enterprise operation concept of "user first", built a professional team in the field of automation, and provided customers with stable quality products and pre-sales and after-sales technical services. We always adhere to the tenet of independent innovation, only good products and scientific management, and always adhere to providing perfect products and system solutions, which is highly respected in our field; Constantly change and provide customers with excellent value-added services.

Our advantages

1, Professional	17+years industrial experience,Know your needs quickly
2, Wide Product Variety	include:encoders,sensors,couplings, and other instruments widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery,servo motor and so on
3, High cost-performence	we can also customize replacement to the same specifications as the brand you need
4, Good service	If you have any question,Welcome to feel free to contact
