Spoke Weighing Pressure Sensor Round Cake Force Sensor

Productdetails:

Plaats van herkomst:	China
Merknaam:	RUIJIA
Certificering:	CE
Modelnummer:	RJ

Detailinformatie

Plaats van herkomst:

China

Merknaam:

RUIJIA

Certificering:

Modelnummer:

Type uitgangssignaal:

Analoogtype

Functie:

lage temperatuur bestand

Productieproces:

Normale draadwond

Materiaal:

Roestvrij staal

IP-beoordeling:

IP65

Certificering:

RoHS

Markeren:

High Light

Markeren:

spoke weighing pressure sensor

round cake force sensor

spoke type load cell

Handelsinformatie

Min. bestelaantal:

Prijs:

USD86 ~1000/piece

Verpakking Details:

Standaard exportverpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen:

1000 stuk/stukken per maand

Productomschrijving

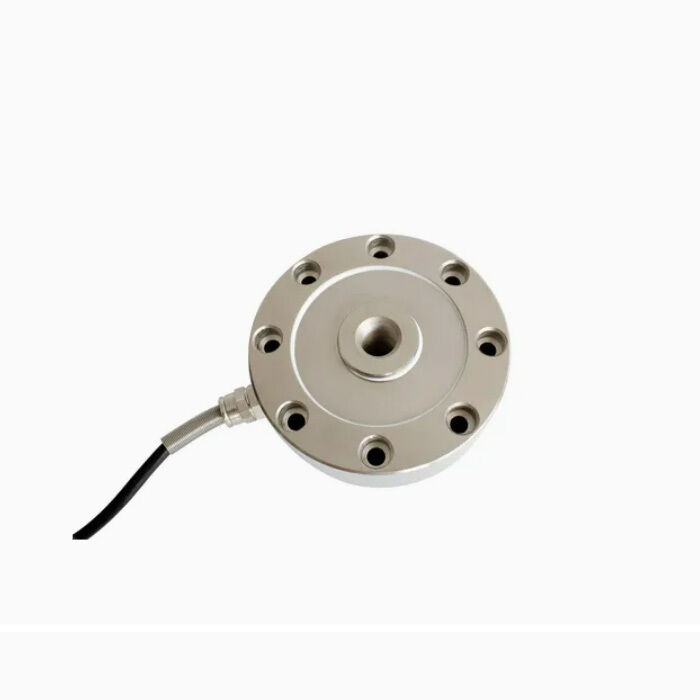

Spoke Weighing Pressure Sensor Round Cake Force Sensor

Spoke Weighing Pressure Sensor Round Cake Force Sensor 0

Load Cell Accessories
We can also provide peripheral supporting parts of the load cell, such as load cell display, load cell transmitter, load cell mounting bracket and other supporting parts
OEM customization
We can carry out OEM customized design and manufacture according to your ideas to achieve the functions and application scenarios you need.
Customized service
We have an excellent design team, which can provide customized design services according to the functions, precision and application you need.

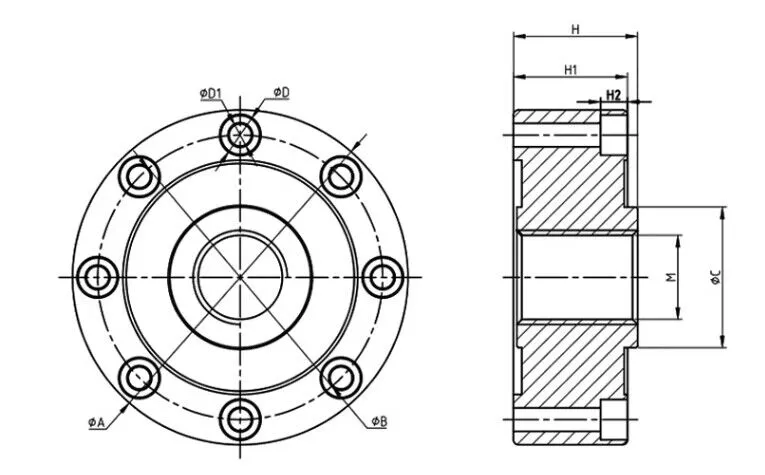

Product size drawing

capacity	ΦA	ΦB	ΦC	M	H	H1	H2	ΦD	ΦD1
30kg~1T	74	63	24	M16*1.5	34	30	7.2	8-Φ9	8-Φ6
1T~8T	105	89	32	M16*1.5	37	34	8	8-Φ11	8-Φ7
10T~20T	120.6	101.8	39	M32*1.5	48	41	8.5	8-Φ14	8-Φ9
30T	141	116.8	50.4	M40*1.5	57.2	50.8	11	8-Φ18	8-Φ11
50T~60T	153	130	70	M40*1.5	58	51	16	16-Φ17	16-Φ11
100T	200	162	76	M60*2	83	70	18	16-Φ20	16-Φ13
150T~200T	250	210	110	M80*3	100	90	20	16-Φ28	16-Φ17
250T	280	230	120	M80*3	90	90	20	16-Φ30	16-Φ17
300T~450T	360	300	190	M100*3	110	110	28	20-Φ40	20-Φ25

Product parameter list

capacity	T	30~450T
Rated Output	mv/v	2.0±0.2
Non-linearity	%F.S	0.03
Hysteresis	%F.S	0.03
Repeatability	%F.S	0.03
Creep	%F.S/3min	0.03
Temp.effect on zero	%F.S/10ºC	0.03
Temp.effect on span	%F.S/10ºC	0.03
Zero balance	mv/v	±0.03
Input impedance	Ω	700±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥2000(100VDC)
Recommended excitation voltage	VDC	5~12
Allowed excitation voltage	VDC	5~15
Compensated temp.Range	ºC	-10ºC~+40ºC
Operating temp.Range	ºC	-20ºC~+60ºC
Safe overload	%F.S	120
Ultimate Overload	%F.S	150
Connection	Excitation: Red:+ Black:-
Connection	Signal: Green:+ White:-
