High Precision Bending Beam Load Cell (0.5-5kg)

Productdetails:

Plaats van herkomst:	China
Merknaam:	RUIJIA
Certificering:	CE
Modelnummer:	RJ

Detailinformatie

Plaats van herkomst:

China

Merknaam:

RUIJIA

Certificering:

Modelnummer:

Materiaal:

Aluminium legeringsmateriaal

Capaciteit:

0.5-5KG

Nauwkeurigheid:

0,03% RO

Beschermingsklasse:

IP65

Nominale output:

0,8-1,0 mV/V

Gebruik en toepassingen:

Schaal voor juwelen

Markeren:

High Light

Markeren:

high precision bending beam load cell

5kg capacity single point load cell

0.5kg min bending beam sensor

Handelsinformatie

Min. bestelaantal:

Prijs:

USD1.5 ~12.8/piece

Verpakking Details:

Standaard exportverpakking

Levertijd:

5-8 werkdagen

Betalingscondities:

L/C, D/A, D/P, Western Union, T/T, Western Union, MoneyGram

Levering vermogen:

1000 stuk/stukken per maand

Productomschrijving

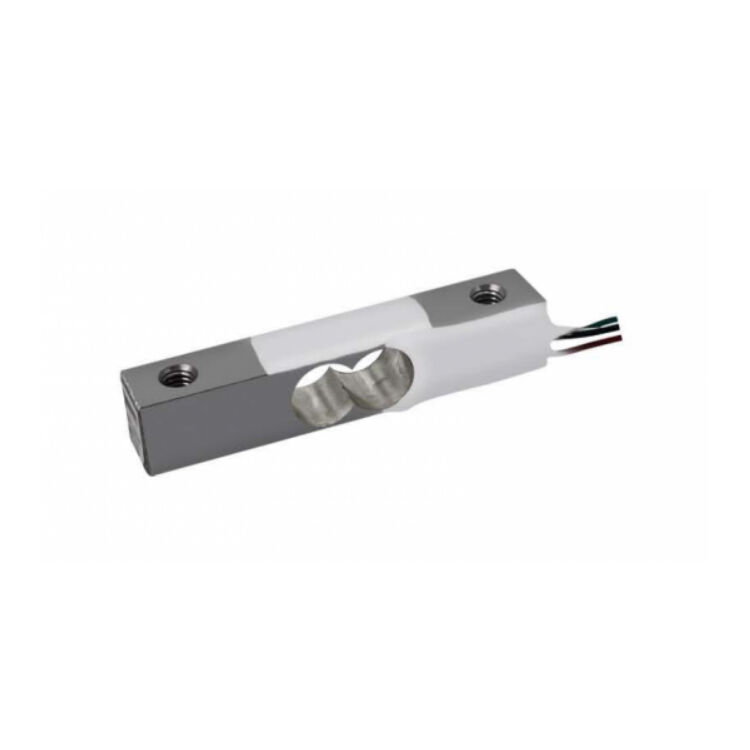

High Precision Bending Beam Load Cell (0.5-5kg)

High Precision Bending Beam Load Cell (0.5-5kg)

The Aluminum alloy parallel load cell sealed with white glue, high precision weighing load cell for jewelry scale with multiple accuracy levels.

Payment	100% payment before shipment
Capacities	0.5kg ; 1, 2, 3, 5 (kg)
Material	Aluminum Alloy
Dimension	52610mm (0.5kg)
Dimension	52910mm (1-5kg)
Rated Output	0.8±0.15 mV/V ; 1.0 mV/V
Protection Class	IP65
Cable	Φ0.8 × 0.3m

Key Features:

Aluminum alloy material

Capacity: 0.5-5kg

Precision: 0.03%R.O.

Protection class: IP65

Rated Output: 0.8-1.0 mV/V

Usage & Applications:

Jewelry scale

Dimension:

Specification:

Rated Capacities	0.5kg; 1,2,3,5 (kg)
Rated Output	0.8±0.15 mV/V 1.0 mV/V
Zero Balance	±0.1mV/V
Non-linearity	0.03 %R.O.
Hysteresis	0.03 %R.O.
Repeatability	0.03 %R.O.
30mins Creep	0.03 %R.O.
30mins Return	0.03 %R.O.
Safe Overload	150 %R.O.
Ultimate Overload	200 %R.O.
Temperature Effect On Output	0.01%R.O./℃
Temperature Effect On Zero	0.05 %R.O./℃
Input Impedance	1115±10% Ω
Output Impedance	1000±10% Ω
Insulation Impedance	≥2000 MΩ/(50VDC)
Recommended Excitation	5~12 VDC
Maximum Excitation	15 VDC
OperatingTemperatureRange	-20~60 ℃
Construction	Aluminum Alloy
Protection Class	IP65
Cable	Φ0.8×0.3m
Recommended Platform Size
Mode of Connection	Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-)
