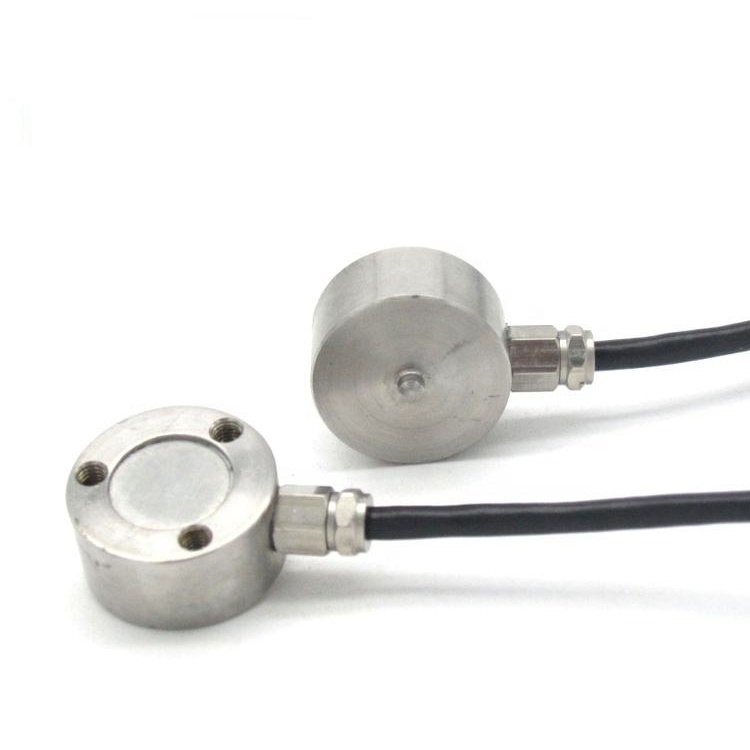

Stainless Steel Compression Load Cell 5-500kg Analog Output

Productdetails:

Plaats van herkomst:	China
Merknaam:	RJ
Certificering:	CE/ROSE
Modelnummer:	RJ

Detailinformatie

Plaats van herkomst:

China

Merknaam:

Certificering:

CE/ROSE

Modelnummer:

Output:

Analoge Sensor

Capaciteit:

5-500kg

Gevoeligheid:

1,5±0,2 % vol/vol

Opwindingsvoltage:

5 ~ 12 VDC

Veilige overbelasting:

150% R.C.

Materiaal:

Roestvrij staal

Markeren:

High Light

Markeren:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Handelsinformatie

Min. bestelaantal:

Prijs:

$40-50

Verpakking Details:

karton of houten krat

Levertijd:

5-8 werkdagen

Betalingscondities:

L/C,D/A,D/P,T/T,Western Union

Levering vermogen:

2000PC/Month

Productomschrijving

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport

Stainless Steel Compression Load Cell 5-500kg Analog Output 2
