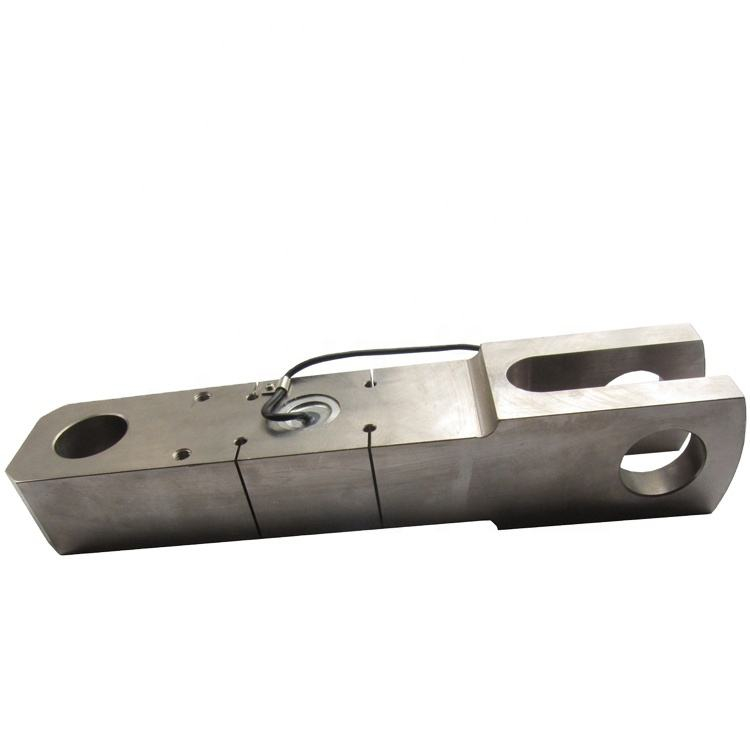

Crane Scale load cell 5 ton 10 ton 20 ton 30 ton
Capacity: 3Ton to 30Ton
Accuracy: C2
Application: Crane scale
Material: Alloy steel
Feature: Alloy steel structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments
Parameter:
|
Application
|
Crane scale
|
|
Model
|
RJ
|
|
Capacity
|
3T, 5T, 10ton, 20ton, 30ton
|
|
rated output
|
2.0±0.02mV/V
|
|
Accuracy class
|
C2
|
|
maximum number of verification intervals
|
2000Nmax
|
|
Minimum loadcell cerification intervals
|
Emax/5000 Vmin
|
|
Combined error
|
≤±0.030 % RO
|
|
Creep
|
0.02%RO/30min
|
|
Temp. effect on sensitivity
|
0.0016 %RO/℃
|
|
Temp.effect on zero
|
0.0026%RO/℃
|
|
Zero balance
|
±1.0 %RO
|
|
Input resistance
|
380±5 ohm
|
|
Output resistance
|
350±3 ohm
|
|
insulation resistance
|
5000 MΩ(50V)
|
|
Recommended excitation voltage
|
5-15V
|
|
Compensated temperature range
|
-10-+40℃
|
|
operating temperature range
|
-35-+80 ℃
|
|
safe overload
|
150 %RO
|
|
Ultimate overload
|
200%RO
|
|
loadcell material
|
Alloy steel
|
|
Connecting cable
|
Φ5.7x0.5m
|
|
Method of connecting wire
|
Red- input+, black- Input-. Green- Output+, White- output -
|
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
