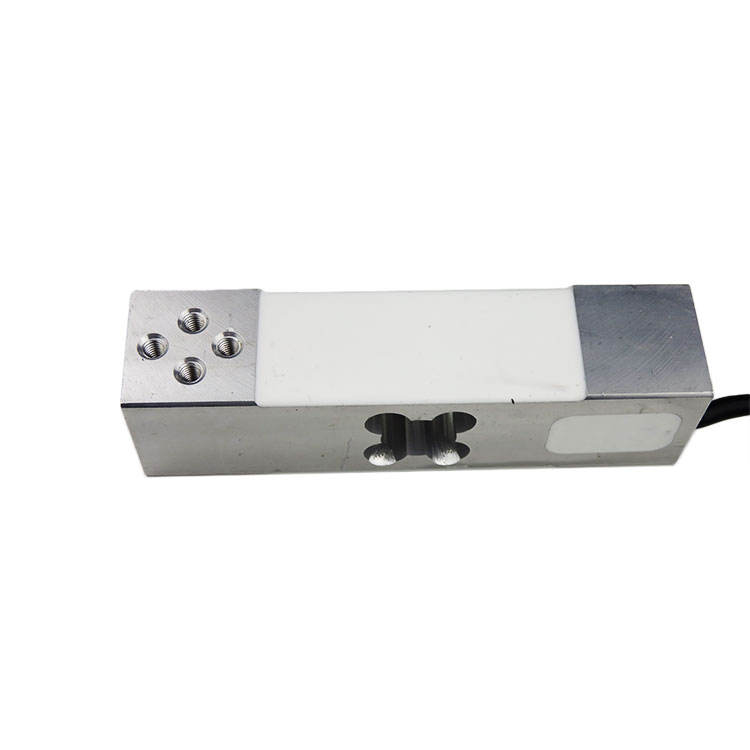

Micro Schenck Truck Scale Load Cell
Load cells are used in smart devices, smart vending cabinets, smart garbage bins, weight detection equipment, etc., and are easy to install and operate.
|
|
|
Rated Output
|
mv/v
|
2.0±0.2
|
|
Non-linearity
|
%F.S
|
0.03%F.S
|
|
Hysteresis
|
%F.S
|
0.03
|
|
Repeatability
|
%F.S
|
0.03
|
|
Creep
|
%F.S/3min
|
0.03
|
|
Temp.effect on zero
|
%F.S/10℃
|
0.03%F.S
|
|
Temp.effect on span
|
%F.S/10℃
|
0.05%F.S
|
|
Zero balance
|
mv/v
|
±0.05
|
|
Input impedance
|
Ω
|
405±6
|
|
Output impedance
|
Ω
|
350±5
|
|
Insulation resistance
|
MΩ
|
≥2000(100VDC)
|
|
Recommended excitation voltage
|
VDC
|
3~12
|
|
Allowed excitation voltage
|
VDC
|
3~12
|
|
Compensated temp.Range
|
℃
|
-10℃~+40℃
|
|
Operating temp.Range
|
℃
|
0℃~+40℃
|
|
Safe overload
|
%F.S
|
120
|
|
Ultimate Overload
|
%F.S
|
150
|
|
Connection
|
Excitation: Red:+ Black:-
|
|
Signal: Green:+ White:-
|
Packing & Transport
