de sensor van de ladingscel
>

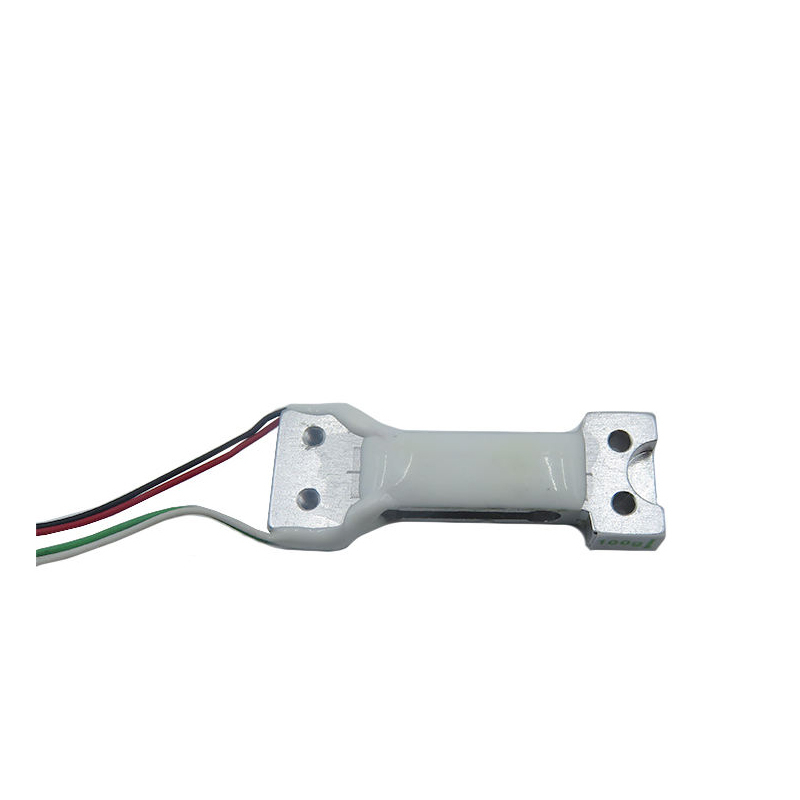

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy

Productdetails:
Plaats van herkomst: China
Merknaam: RJ
Certificering: CE/ROSE
Modelnummer: RJ
Detailinformatie
Plaats van herkomst:
China
Merknaam:
RJ
Certificering:
CE/ROSE
Modelnummer:
RJ
Gebruik:
Gewicht
Beschrijving:
Sensor voor het wegen van een enkel punt
Capaciteit:
3 tot 120 kg
Niet-lineariteit:
0,03% FS
Herhaalbaarheid:
0,03% FS
Invoerimpedantie:
405±6Ω
Markeren:

High Light

Markeren:

50KG compression load cell

,

high accuracy load cell sensor

,

weighing load cell 0.03%FS

Handelsinformatie
Min. bestelaantal:
1
Prijs:
$5-10
Verpakking Details:
karton of houten krat
Levertijd:
5-8 werkdagen
Betalingscondities:
L/C,D/A,D/P,T/T,Western Union
Levering vermogen:
2000PC/Month
Productomschrijving

 Compression Load 4 Wire Temperature Transmitter With Sensor Laod Cell


50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 0

Specifications
Rated Output
mv/v
2.0±0.2
Non-linearity
%F.S
0.03%F.S
Hysteresis
%F.S
0.03
Repeatability
%F.S
0.03
Creep
%F.S/3min
0.03
Temp.effect on zero
%F.S/10℃
0.03%F.S
Temp.effect on span
%F.S/10℃
0.05%F.S
Zero balance
mv/v
±0.05
Input impedance
Ω
405±6
Output impedance
Ω
350±5
Insulation resistance
≥2000(100VDC)
Recommended excitation voltage
VDC
3~12
Allowed excitation voltage
VDC
3~12
Compensated temp.Range
-10℃~+40℃
Operating temp.Range
0℃~+40℃
Safe overload
%F.S
120
Ultimate Overload
%F.S
150
Connection
Excitation: Red:+ Black:-
Signal: Green:+ White:-




50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 1

50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 2

Packing & Transport



50KG Compression Load Cell Sensor for Weighing 0.03%FS Accuracy 3

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.


Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.


Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
